Fullerton FULLT 27018

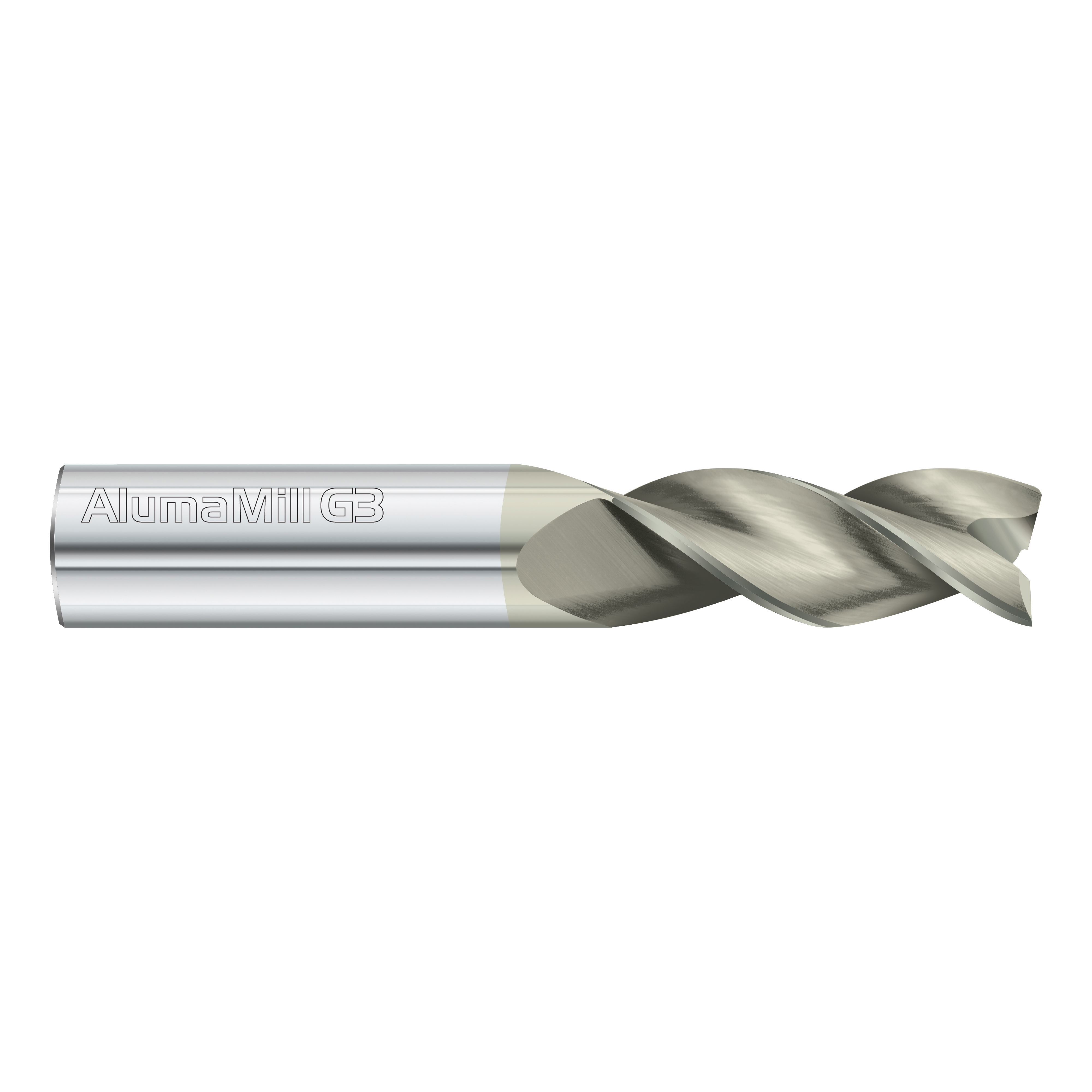

Fullerton 27018 3833 Center Cutting Single End Standard Length Square End End Mill, 3/4 in Dia Cutter, 1-3/4 in Length of Cut, 3 Flutes, 3/4 in Dia Shank, 4 in OAL, FC5 Coated

Invoice description: E/m 3/4x1-5/8 Locx4 3fl Fc5 Carbide

UNSPSC: 23242511
Manufacturer PN: 27018
$213.18 EA
Factory Order
Estimated to ship in 7 days
QTY:


Fullerton End Mill, Center Cutting Single End Standard Length Square End, Series: 3833, 3/4 in Diameter Cutter, 4 in Overall Length, 1-3/4 in Length of Cut, 3 Flutes, Spiral Flute, 3/4 in Shank Diameter, Right Hand Cutting Direction, 37.5 deg Helix Angle, ISO Code: 9001:2008, Dura Carb, FC5 Coated

  • Features

  • h6 shank diameter tolerance
  • +0.0000 in, -0.0005 in/+0.000, -0.013 mm cutter diameter tolerance

Specifications

Cutter Diameter3/4 in
Cutting DirectionRight Hand
FinishFC5 Coated
Flute TypeSpiral
Helix Angle37.5 deg
ISO Code9001:2008
Length of Cut1-3/4 in
MaterialDura Carb
Number of Flutes3
Overall Length4 in
Series3833
Shank Diameter3/4 in
TypeCenter Cutting Single End Standard Length Square End

Additional Information

Country of OriginUS
