GARR GARR 10387

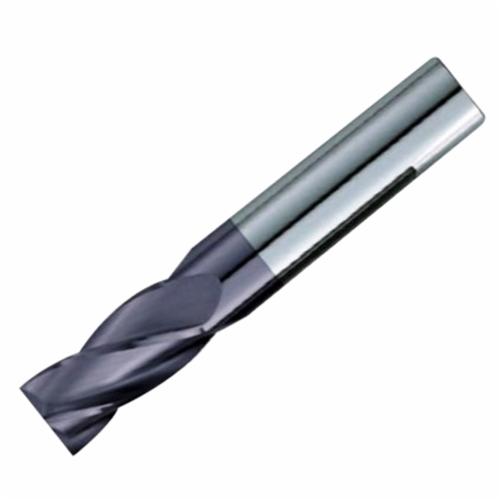

GARR 10387 853MA Center Cutting Square End Standard Length High Performance End Mill, 9/64 in Dia Cutter, 8 mm Length of Cut, 4 Flutes, 3/16 in Dia Shank, 50 mm OAL, AlTiN Coated
Invoice description:
Em 9/64x8locx3/16x50mm 4fl Altin Hp
Factory Order
GARR High Performance End Mill, Center Cutting Square End Standard Length, Series: 853MA, 9/64 in Diameter Cutter, 50 mm Overall Length, 8 mm Length of Cut, 4 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, 42 mm Shank Length, Solid Submicron Carbide, AlTiN Coated
Features
- High performance milling in aluminum and stainless steel
- Rigid work holding, machine stability and part integrity are critical
- Slots aluminum at an axial depth of 25% of dia
- Up to 40% faster than uncoated
- Sharp corners
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter9/64 in
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle50 deg
Length of Cut8 mm
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length50 mm
Series853MA
Shank Diameter3/16 in
Shank Length42 mm
TypeCenter Cutting Square End Standard Length
Additional Information
Country of OriginUS
Specification Sheet
