GARR GARR 10118

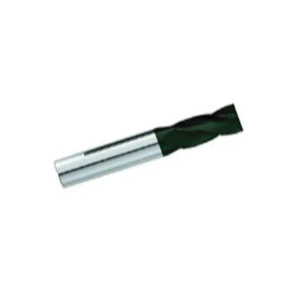

GARR 10118 210D Center Cutting Square End Standard Length High Performance End Mill, 3/16 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 3/16 in Dia Shank, 2 in OAL, Crystalline Diamond Coated

Invoice description: Em 3/16x5/8locx3/16x2 4fl Cvd Hp

UNSPSC: 23242511
Manufacturer PN: 10118
$131.92 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR High Performance End Mill, Center Cutting Square End Standard Length, Series: 210D, 3/16 in Diameter Cutter, 2 in Overall Length, 5/8 in Length of Cut, 4 Flutes, Spiral Flute, 3/16 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-3/8 in Shank Length, Solid Grade C-2 Carbide, Crystalline Diamond Coated

  • Features

  • Up to 17 times tool life versus uncoated end mills
  • For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum

Specifications

Cutter Diameter3/16 in
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut5/8 in
MaterialSolid Grade C-2 Carbide
Number of Flutes4
Overall Length2 in
Series210D
Shank Diameter3/16 in
Shank Length1-3/8 in
TypeCenter Cutting Square End Standard Length

Additional Information

Country of OriginUS
