GARR GARR 10097

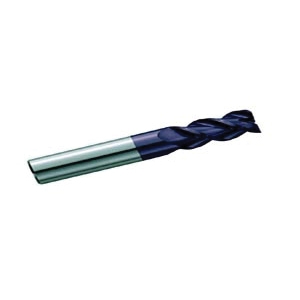

GARR 10097 853MA Center Cutting Square End Mill, 12 mm Dia Cutter, 16 mm Length of Cut, 3 Flutes, 12 mm Dia Shank, 65 mm OAL, AlTiN/X.CEED Coated
Invoice description:
Em 12x16locx12x65mm 3fl Altin
Factory Order
GARR End Mill, Center Cutting Square End, Series: 853MA, 12 mm Diameter Cutter, 65 mm Overall Length, 16 mm Length of Cut, 3 Flutes, Helix Flute, 12 mm Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, Submicron Solid Carbide, AlTiN/X.CEED Coated
Features
- High performance milling in aluminum and stainless steel
- Rigid work holding, machine stability and part integrity are critical
- Slots aluminum at an axial depth of 25% of dia
- Up to 40% faster than uncoated
- Sharp corners
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter12 mm
Cutting DirectionRight Hand
FinishAlTiN/X.CEED Coated
Flute TypeHelix
Helix Angle50 deg
Length of Cut16 mm
MaterialSubmicron Solid Carbide
Number of Flutes3
Overall Length65 mm
Series853MA
Shank Diameter12 mm
TypeCenter Cutting Square End
Additional Information
Country of OriginUS
