GARR GARR 10028

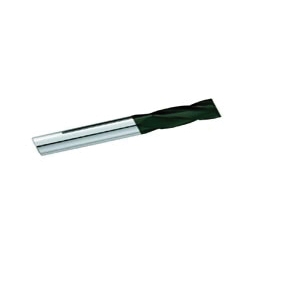

GARR 10028 210D Center Cutting Standard Length Square End Mill, 0.046 in Dia Cutter, 3/16 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Crystalline Diamond Coated
Invoice description:
Em 0.046x3/16locx1/8x 1-1/2 4fl Cvd
In stock
(1)
GARR End Mill, Center Cutting Standard Length Square End, Series: 210D, 0.046 in Diameter Cutter, 1-1/2 in Overall Length, 3/16 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Grade C-2 Solid Carbide, Crystalline Diamond Coated
Features
- Up to 17 times tool life versus uncoated end mills
- For graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
Specifications
ApplicationFor graphite, fiber reinforced plastics, carbon fiber and high silicon aluminum
Cutter Diameter0.046 in
Cutting DirectionRight Hand
FinishCrystalline Diamond Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut3/16 in
MaterialGrade C-2 Solid Carbide
Number of Flutes4
Overall Length1-1/2 in
Series210D
Shank Diameter1/8 in
TypeCenter Cutting Standard Length Square End
Additional Information
Country of OriginUS
Specification Sheet
