GARR GARR 10017

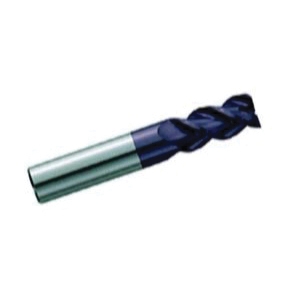

GARR 10017 853MA Center Cutting Square End Standard Length High Performance End Mill, 6 mm Dia Cutter, 12 mm Length of Cut, 3 Flutes, 6 mm Dia Shank, 50 mm OAL, AlTiN Coated
Invoice description:
Em 6x12locx6x50mm 3fl Altin Hp
Factory Order
GARR High Performance End Mill, Center Cutting Square End Standard Length, Series: 853MA, 6 mm Diameter Cutter, 50 mm Overall Length, 12 mm Length of Cut, 3 Flutes, Spiral Flute, 6 mm Shank Diameter, Right Hand Cutting Direction, 50 deg Helix Angle, 38 mm Shank Length, Solid Submicron Carbide, AlTiN Coated
Features
- High performance milling in aluminum and stainless steel
- Rigid work holding, machine stability and part integrity are critical
- Slots aluminum at an axial depth of 25% of dia
- Up to 40% faster than uncoated
- Sharp corners
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter6 mm
Cutting DirectionRight Hand
FinishAlTiN Coated
Flute TypeSpiral
Helix Angle50 deg
Length of Cut12 mm
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length50 mm
Series853MA
Shank Diameter6 mm
Shank Length38 mm
TypeCenter Cutting Square End Standard Length
Additional Information
Country of OriginUS
