GARR GARR 10010

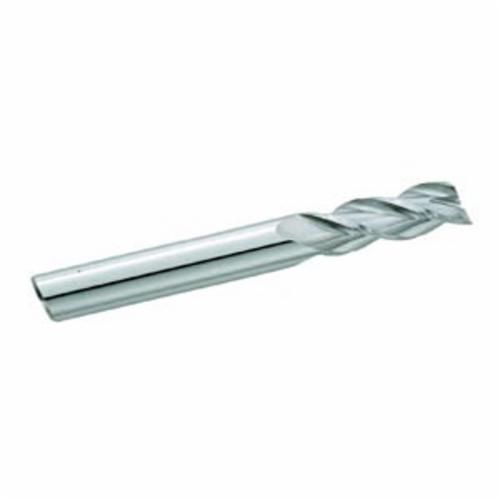

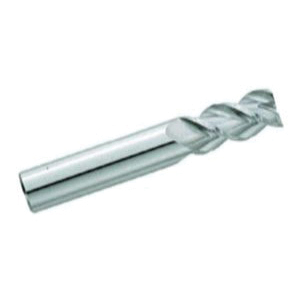

GARR 10010 853M Center Cutting Square End High Performance End Mill, 6 mm Dia Cutter, 12 mm Length of Cut, 3 Flutes, 6 mm Dia Shank, 50 mm OAL, Uncoated
Invoice description:
Em 6x12locx6x50mm 3fl N/c Hp
Factory Order
GARR High Performance End Mill, Center Cutting Square End, Series: 853M, 6 mm Cutter Dia, 50 mm Overall Length, 12 mm Length of Cut, 3 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 50 deg Helix Angle, 38 mm Shank Length, Solid Submicron Carbide, Uncoated
Features
- High performance milling in aluminum and stainless steel
- Rigid work holding, machine stability and part integrity are critical
- Slots aluminum at an axial depth of 25% of dia
- Sharp corners
Specifications
Cutter Diameter6 mm
Cutting DirectionRight Hand
FinishUncoated
Flute TypeSpiral
Helix Angle50 deg
Length of Cut12 mm
MaterialSolid Submicron Carbide
Number of Flutes3
Overall Length50 mm
Series853M
Shank Diameter6 mm
Shank Length38 mm
TypeCenter Cutting Square End
Additional Information
Country of OriginUS
Specification Sheet
