GARR GARR 06037

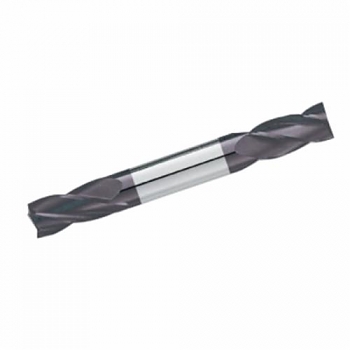

GARR 06037 175MA Center Cutting Double End Square End Stub Length End Mill, 1/16 in Dia Cutter, 1/8 in Length of Cut, 4 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, TiALN Coated
Invoice description:
Em 1/16x1/8locx1/8x1-1/2 4fl Tialn Dbl Stub
Factory Order
GARR End Mill, Center Cutting Double End Square End Stub Length, Series: 175MA, 1/16 in Diameter Cutter, 1-1/2 in Overall Length, 1/8 in Length of Cut, 4 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, 1-3/8 in Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Shorter flute length for rigidity
- Extremely versatile
- Up to 40% faster than uncoated
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter1/16 in
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut1/8 in
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length1-1/2 in
Series175MA
Shank Diameter1/8 in
Shank Length1-3/8 in
TypeCenter Cutting Double End Square End Stub Length
Additional Information
Country of OriginUS
Specification Sheet
