GARR GARR 05587

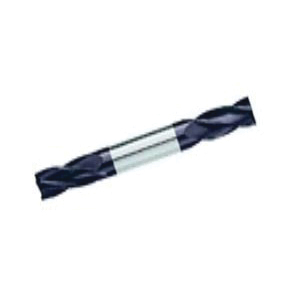

GARR 05587 865MA Center Cutting Stub Length Double End Square End Mill, 4.5 mm Dia Cutter, 9.5 mm Length of Cut, 2 Flutes, 5 mm Dia Shank, 65 mm OAL, TiAlN Coated
Invoice description:
Em 4.5x9.5locx5x65mm 2fl Tialn Dbl Stub
Factory Order
GARR End Mill, Center Cutting Stub Length Double End Square End, Series: 865MA, 4.5 mm Diameter Cutter, 65 mm Overall Length, 9.5 mm Length of Cut, 2 Flutes, Spiral Flute, 5 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN Coated
Features
- Shorter flute length for rigidity
- Up to 40% faster than uncoated
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter4.5 mm
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut9.5 mm
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length65 mm
Series865MA
Shank Diameter5 mm
TypeCenter Cutting Stub Length Double End Square End
Additional Information
Country of OriginUS
