GARR GARR 02657

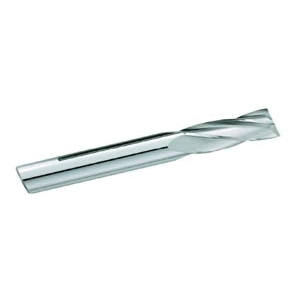

GARR 02657 870MA Center Cutting Stub Length Square End Mill, 11 mm Dia Cutter, 19 mm Length of Cut, 4 Flutes, 11 mm Dia Shank, 65 mm OAL, TiAlN Coated

Invoice description: Em 11x19locx11x65mm 4fl Tialn Stub

UNSPSC: 27112803
Manufacturer PN: 02657
$52.72 EA
Factory Order
Estimated to ship in 7 days
QTY:


GARR End Mill, Center Cutting Stub Length Square End, Series: 870MA, 11 mm Diameter Cutter, 65 mm Overall Length, 19 mm Length of Cut, 4 Flutes, Helix Flute, 11 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN Coated

  • Features

  • Shorter flute length for rigidity
  • Extremely versatile
  • Up to 40% faster than uncoated

Specifications

ApplicationDry or Semi-Dry Machining
Cutter Diameter11 mm
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut19 mm
MaterialSubmicron Solid Carbide
Number of Flutes4
Overall Length65 mm
Series870MA
Shank Diameter11 mm
TypeCenter Cutting Stub Length Square End

Additional Information

Country of OriginUS
