GARR GARR 02547

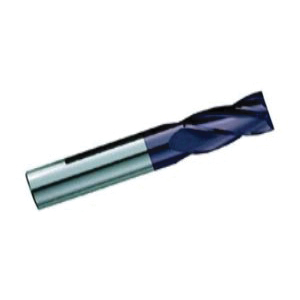

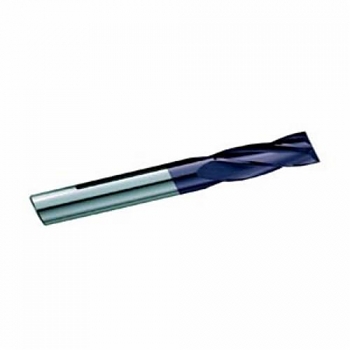

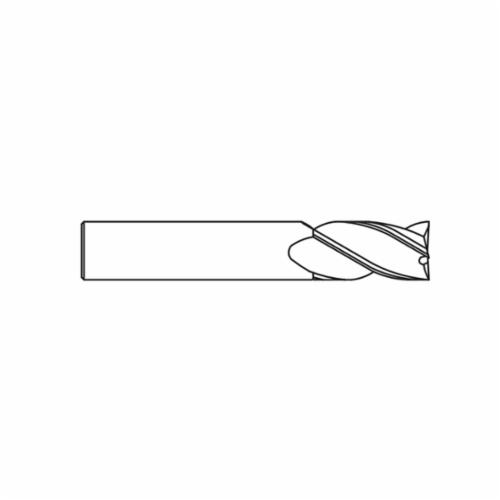

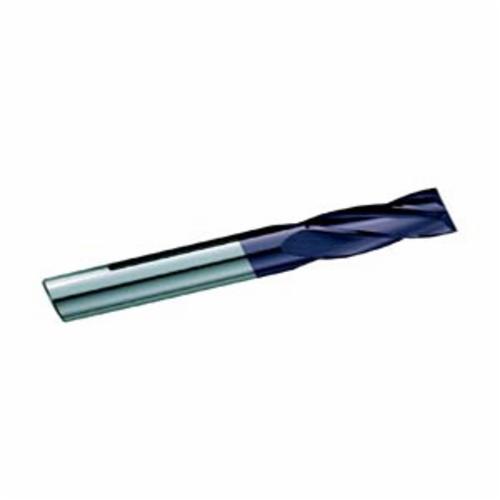

GARR 02547 870MA Center Cutting Single End Square End Stub Length End Mill, 2.5 mm Dia Cutter, 5 mm Length of Cut, 4 Flutes, 3 mm Dia Shank, 38 mm OAL, TiALN Coated
Invoice description:
Em 2.5x5locx3x38mm 4fl Tialn Stub
Factory Order
GARR End Mill, Center Cutting Single End Square End Stub Length, Series: 870MA, 2.5 mm Diameter Cutter, 38 mm Overall Length, 5 mm Length of Cut, 4 Flutes, Spiral Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Plain/Round Shank, 33 mm Shank Length, Solid Submicron Carbide, TiALN Coated
Features
- Shorter flute length for rigidity
- Extremely versatile
- Up to 40% faster than uncoated
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter2.5 mm
Cutting DirectionRight Hand
FinishTiALN Coated
Flute TypeSpiral
Helix Angle30 deg
Length of Cut5 mm
MaterialSolid Submicron Carbide
Number of Flutes4
Overall Length38 mm
Series870MA
Shank Diameter3 mm
Shank Length33 mm
Shank TypePlain/Round
TypeCenter Cutting Single End Square End Stub Length
Additional Information
Country of OriginUS
