GARR GARR 01517

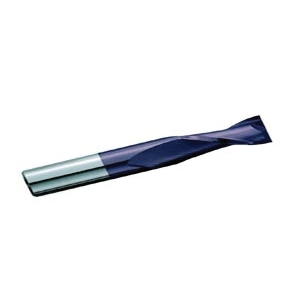

GARR 01517 860MA Center Cutting Stub Length Square End Mill, 1 mm Dia Cutter, 2 mm Length of Cut, 2 Flutes, 3 mm Dia Shank, 38 mm OAL, TiAlN Coated
Invoice description:
Em 1x2locx3x38mm 2fl Altin Stub
Factory Order
GARR End Mill, Center Cutting Stub Length Square End, Series: 860MA, 1 mm Diameter Cutter, 38 mm Overall Length, 2 mm Length of Cut, 2 Flutes, Helix Flute, 3 mm Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Submicron Solid Carbide, TiAlN Coated
Features
- Shorter flute length for rigidity
- Extremely versatile
- Up to 40% faster than uncoated
Specifications
ApplicationDry or Semi-Dry Machining
Cutter Diameter1 mm
Cutting DirectionRight Hand
FinishTiAlN Coated
Flute TypeHelix
Helix Angle30 deg
Length of Cut2 mm
MaterialSubmicron Solid Carbide
Number of Flutes2
Overall Length38 mm
Series860MA
Shank Diameter3 mm
TypeCenter Cutting Stub Length Square End
Additional Information
Country of OriginUS
Specification Sheet
