Dixon DIXV RD400EZ

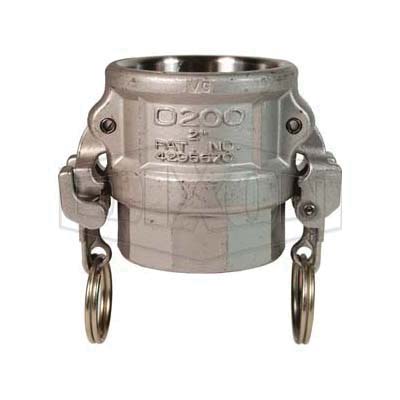

Dixon RD400EZ EZ Boss-Lock Type D Cam and Groove Coupler, 4 in Nominal, Female Coupler x FNPT End Style, 316 Stainless Steel

Invoice description: 4" Ss Ez Cplr X F Npt

UNSPSC: 40141734

Manufacturer PN: RD400EZ

^$320.34 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Dixon Cam and Groove Coupler, Type D, Series: EZ Boss-Lock, Coupling Fitting/Connector, 4 in Nominal, Female Coupler x FNPT End Style, 100 psi Pressure, 316 Stainless Steel

Features
11 in open cam arm
Resistant to accidental disconnection when dragged
The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm
Rotating action helps keep the locking device free of debris
Designed to protect critical parts from impact and to withstand rugged use
Buna seal
If the rotating lever is not flush with the handle, it is not properly engaged
Under no circumstances should cam and groove couplings be used for compressed air or steam service
Under no circumstances should the EZ boss-lock cam arms be used on any fitting not specifically designed for their use
Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
