Dixon DIXV RB200EZ

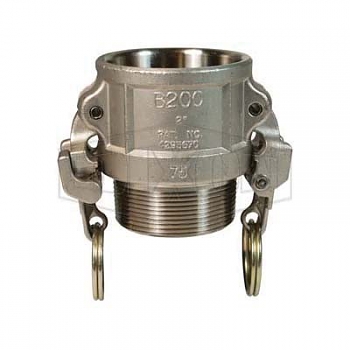

Dixon RB200EZ EZ Boss-Lock Type B Cam and Groove Coupler, 2 in Nominal, Female Coupler x MNPT End Style, 316 Stainless Steel

UPC: 089109745432

UNSPSC:

Manufacturer PN: RB200EZ

^$149.02 EA

Factory Order
Estimated to ship in 7 days

enlarge

Product Overview

Dixon Cam and Groove Coupler, Type B, Series: EZ Boss-Lock, Coupling Fitting/Connector, 2 in Nominal, Female Coupler x MNPT End Style, 250 psi Pressure, 316 Stainless Steel

Features
8-5/32 in open cam arm
Resistant to accidental disconnection when dragged
The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm
Rotating action helps keep the locking device free of debris
Designed to protect critical parts from impact and to withstand rugged use
Buna seal
If the rotating lever is not flush with the handle, it is not properly engaged
Under no circumstances should cam and groove couplings be used for compressed air or steam service
Under no circumstances should the EZ boss-lock cam arms be used on any fitting not specifically designed for their use
Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70 deg F with a standard seal installed
