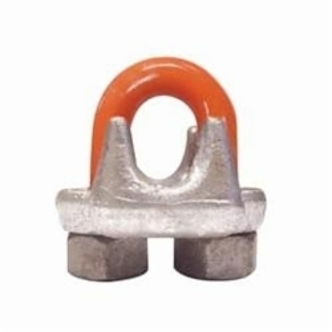

CM Wire Rope Clip, 1/4 in Dia Cable, Forged Steel, 2 Clips Minimum, 4-3/4 in Rope Turn Back, 15 ft-lb Minimum, Galvanized
Features
- Wire rope clips are used to secure the end of wire rope when forming a loop, i.e., for wire rope turn-back
- Each configuration is equally strong and effective, but care must be exercised for proper installation of single saddle clips
- Drop forged base
- 1-1/32 in inside width
- 1-7/16 in length
- 5/16 in thread Dia
- 1/2 in thread length
- Thread size 18
- 3/4 in center to center
- Clips are available in two configurations: mid grip (double saddle) and single saddle
Specifications
ApplicationFor industrial applications
Cable Size1/4 in Dia
FinishGalvanized
MaterialForged Steel
Minimum Number of Clips2
Minimum Torque15 ft-lb
Rope Turn Back4-3/4 in
