Cleveland CLEVELAND C46164

Cleveland C46164 1003 General Purpose Single End Countersink, 1/2 in Dia Body, 1/4 in Dia Shank, 3 Flutes, 90 deg Included, HSS

Invoice description: Countersink 1/2" 90deg H Ss

UPC: 697334461647
UNSPSC: 27112812
Manufacturer PN: C46164
$34.54 EA
Factory Order
Estimated to ship in 8 days
QTY:

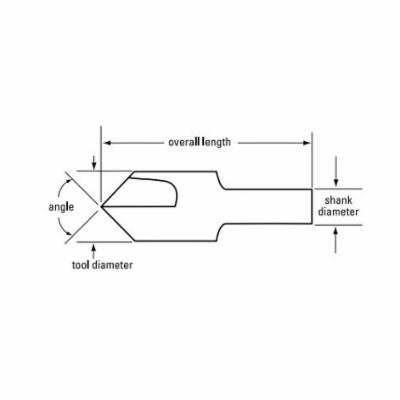

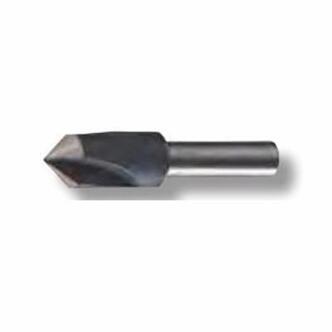

Cleveland Countersink, General Purpose Single End, Series: 1003, 1/2 in Diameter Body, 2 in Overall Length, Straight Shank, 1/4 in Shank Diameter, 3 Flutes, Right Hand Cutting Direction, 90 deg Included Angle, 45 deg Centerline Angle, HSS, Steam Oxide

  • Features

  • The pre-drilled hole for countersinking should not be less than 10% of the countersink diameter
  • Use multi-flute countersinks for much larger holes
  • Run countersinks at 50 to 66% of recommended drill speeds

Specifications

ApplicationGeneral Purpose Drilling Applications
Body Diameter1/2 in
Centerline Angle45 deg
Cutting DirectionRight Hand
FinishSteam Oxide
Included Angle90 deg
MaterialHSS
Number of Flutes3
Overall Length2 in
Series1003
Shank Diameter1/4 in
Shank TypeStraight
TypeGeneral Purpose Single End

Additional Information

Standards/ApprovalANSI Specified
